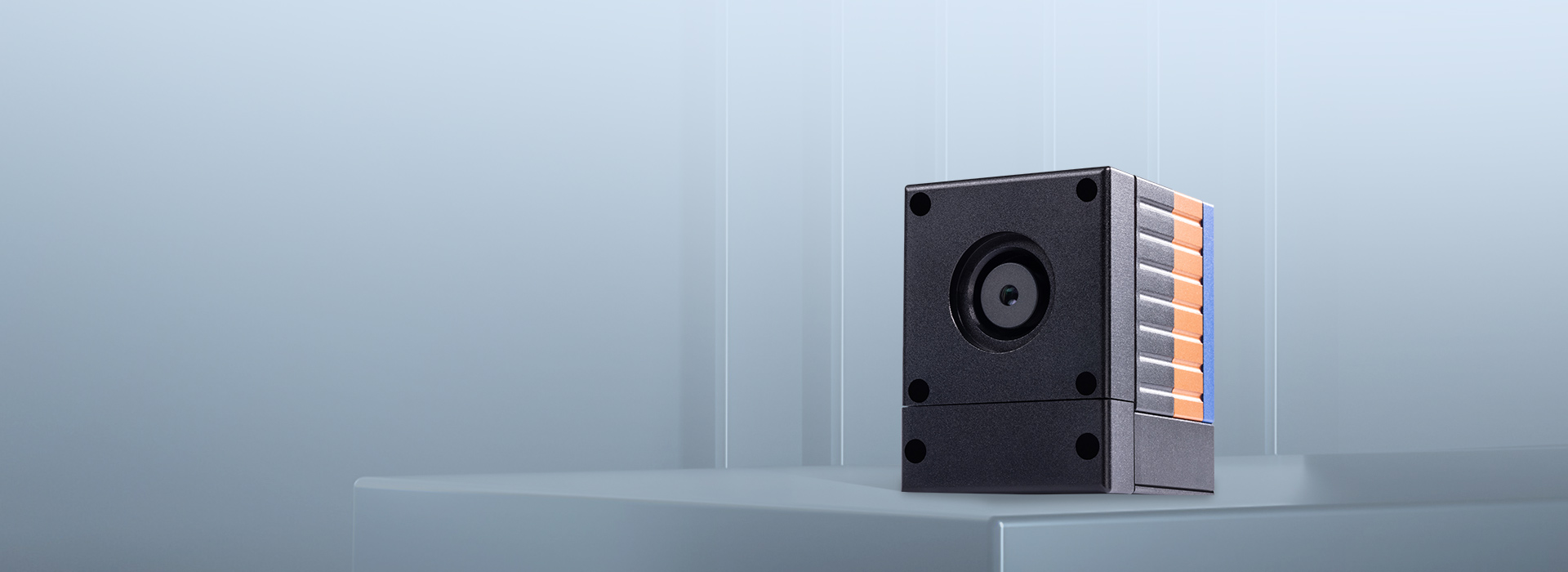

Short-wave infrared hyperspectral camera

It is mainly composed of a tunable MEMS-FPI and a short-wave infrared senseor, with a detectable band range of 950nm-1650nm. The camera is small, simple, the band value are continuously tunable, and the number of bands can be cut according to the requirements to increase the acquisition efficiency of hyperspectral data acquisition.

Get a solution

Product advantages

World leader

can measure the spectrum of each pixel while imaging and output hyperspectral images.
Accurate detection

the substances in many scenes are uneven and contain multiple components. The material composition content of each pixel is analyzed respectively, and the spatial distribution can be output.
Large visual area

wide field of view

Specification

Product	Stoff Sw100
Type	HYP-CAM-H1016UW
lmaging mode	Area array, MEMS FPl scanning
Sensor	InGaAs
Spectral range	1050-1650nm
Spectral resolution (FWHM)	30nm
Spectral step	10nm
Spectral bands	61
Spectral SNR	200:1
Resolution	320*320
Dynamic range	14bit
Preview	25fps
Working distance	150mm(option)
FOV	H:27，V:27
FocuS	Manual focusing
Data interface	Ethernet
Power input	12V/1A
Power consumption	<12W
Weight	400g
Dimensions (L x W x H)	607088mm
Relative humidity	5%~90%RH(non-condensing)
Software develop	Hypernano SDK,Hyperano NIR

Application Scenario

Industrial sorting

Non-destructive, non-contact, wide imaging range, millisecond level real-time online detection.

Water content imaging monitoring

Real-time and online monitoring of the moisture content of agricultural and sideline products in the production process, and optimize product quality control.

Food and Drug Testing

Food quality testing, pharmaceutical composition testing, etc.
