Visible near-infrared hyperspectral camera

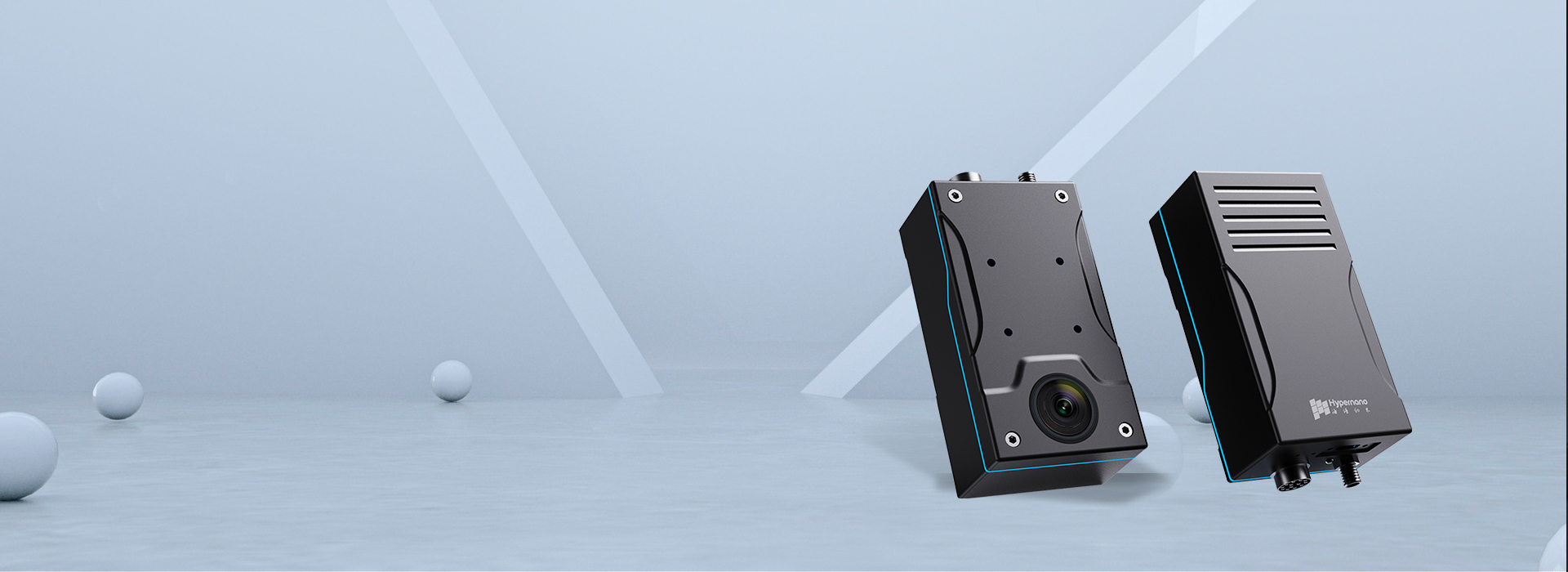

Visible near-infrared (VIS-NIR) hyperspectral camera

The new hyperspectral camera based on tunable FPI has a small size, light mass and low power consumption. With the advantages of MEMS-FPI technology, the product also has the unique advantages of fast speed, wide field of view, high spectral resolution, continuous tunable spectral range and so on.

Get a solution

Product advantages

World leader

you can measure the spectrum of each pixel while imaging and output hyperspectral images.
Fast speed

Stepless adjustment, any number of bands, according to different scenarios for band selection
Large visual area

wide field of view

Specification

Product	Stoff H100	Stoff H110	Stoff H120
Type	HYP-CAM-H4070UW	HYP-CAM-H6590UW	HYP-CAM-H4095UW
lmaging mode	Area array, MEMS FPl scanning
Sensor	CMOS
Spectral range	400-700nm	650-900nm	400-950nm
Spectral resolution(FWHM)	20nm
Spectral step	10nm/5nm	10nm/5nm	10nm/5nm
Spectral bands	31/61	26/51	56/111
Spectral SNR	200:1
lmage SNR	40db
Resolution	1280*1024
Dynamic range	10bit
Preview	30fps
Working distance	200mm(option)
EFL	2.9mm
FOV	H: 60°, V: 50°, D: 74°
Focus	Fixed
Data interface	USB2.0/WiFi
Power input	5V
Power consumption	2.5W
Weight	235g
Dimensions (L x W x H)	1125634mm	1125634mm	1196038mm
Relative humidity	5%~90%RH(non-condensing)
Software develop	Hypernano SDK, HyperCap

Application Scenario

Color calibration

Printed matter anti-counterfeiting, color difference detection, etc

Food detection

Identify target food, identify food category, analyze food freshness, etc

Light source detection

Detect the central wavelength, half wave width and other parameters of different color LED

OLED Detection

Accurate detection OLED screen brightness uniformity
